GroundFix MMS From RPK- Unique Ground Mounted Solutions

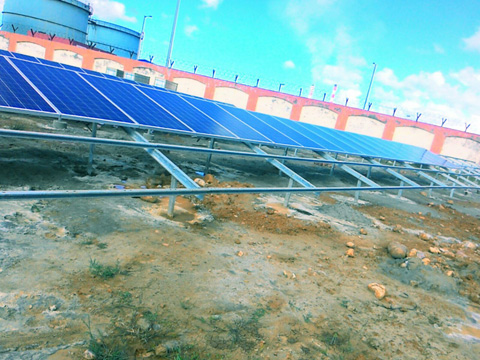

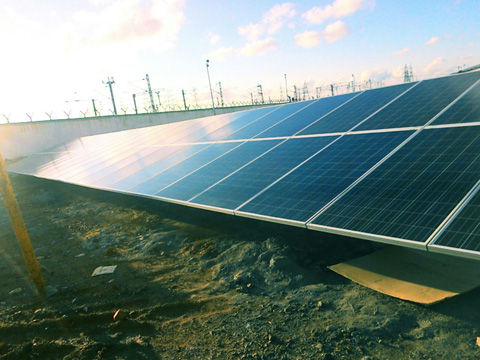

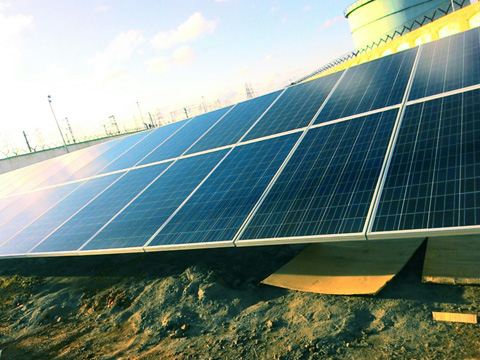

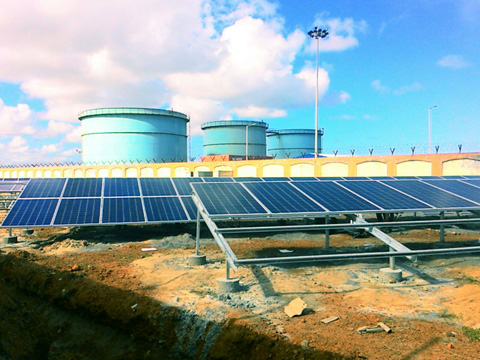

Rpk Green manufactures Solar Module Mounting Structures to support the Solar PV panels, from project executed all over India including Rajasthan, MP,Tamil Nadu etc . The Solar panel mounting structures supported in such abnormal soil conditions are the Ground Fix MMS Solutions provided by RPK Green – dual pole structures. The portrait orientation of dual pole structures require lesser space and can be accommodated to landscape position also to form any array size. this is the flexibility that has made our solutions very popular for fixed angle.

Advantages:-

• Easy manufacturing process with in-house design and fabrication
• An optimized solution for a project specific customisation and requirements
• Significant savings on time and money through unique design and simplicity
• Optimized array layout and minimized shading losses
• Typical elevation angle of 10 to 20 degrees, most common in India
• Site-specific design, wind analysis and engineering support
• Durable and certified to withstand heavy wind and rain loads
• esigned to enable faster on-site installation at a rate of more than 1MW/ Day
• Five-year warranty, extendable to ten years

Technical Specs

• Field of Application- Ground mounted,
• Modules Type - All types (Framed, Frameless)
• Type of Soil - All Soil classes
• Module Orientation - Landscape / Portrait
• Material Mild Steel, HDG of 80 microns and Pre – Galvanized sheets of 550 GSM
• Connecting elements - SS 304
• Concrete (cum)-100 cum / MWp
• Wind survival-As per IS 875 or Client requirement

Type of foundations

• Cast in – site concrete
• Driven pile
• Ballast
• Earth Screw
• Rammed Foundations

Code & Software

• Calculation principles in accordance with IS 875 for design load in structures and IS 800 for steel construction.
• STAAD-Pro is a structural engineering software to analyze and design virtually any type of structure through its flexible modelling environment.
