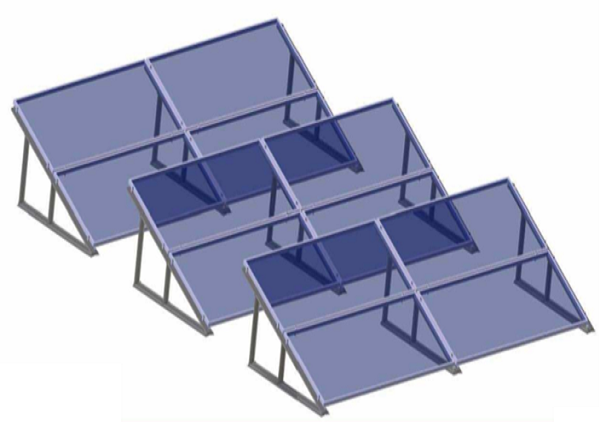

Two Module Mounting Structure
Technical Data
SoftUnique provides literally everything you need done related to web/graphics services. We invite you to establish your own highly recognized personal or professional brand with the help of our services.
Custom PHP apps for your business. Access the application via web anywhere around the world.
|
DESCRIPTION |
MMS_2M |
|---|---|
|
CONFIGURATION |
AERODYNAMIC DESIGN, TWO MODULE STRUCTURE |
|
INSTALLATION TYPE |
FLAT ROOF / PITCHED ROOF |
|
DESIGN LIFETIME |
20 YEARS |
|
SIZE |
2000 x 1800 MM |
|
MATERIAL |
ALUMINIUM ALLOY - 6063 T6 |
|
TILT ANGLE |
0º - 60º (FLAT ROOF) & CUSTOMIZED (PITCHED ROOF) |
|
TRACKER TYPE |
FIXED |
|
DESIGN WIND LOAD |
150 KM/HR |
|
DESIGN SNOW LOAD |
1.8 KN/M2 |
|
PANEL TYPE |
ANY TYPE OF PV MODULES |
|
MODULE ORIENTATION |
LANDSCAPE OR PORTRAIT |
|
STRUCTURE |
ANODIZED ALUMINIUM (CUSTOMER REQUIREMENT) |
|
DISTANCE FROM GROUND TO PANEL |
100 MM |
|
DISTANCE BETWEEN PANEL AIRGAP |
25 MM |
|
TOTAL WEIGHT FOR 1KW |
8 - 10 KGS |
|
MAINTENANCE |
FREE, PANEL CLEANING AS REQUIRED |
