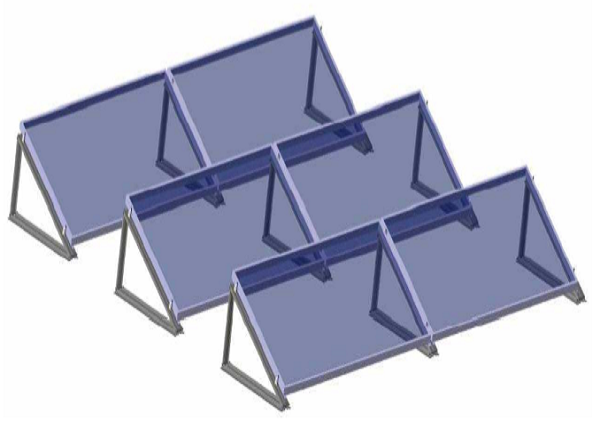

CONFIGURATION

AERODYNAMIC DESIGN, TWO MODULE STRUCTURE

INSTALLATION TYPE

FLAT ROOF / PITCHED ROOF

DESIGN LIFETIME

20 YEARS

SIZE

1000 x 900 MM

MATERIAL

ALUMINIUM ALLOY - 6063 T6

TILT ANGLE

0º - 60º (FLAT ROOF)  & CUSTOMIZED (PITCHED ROOF)

TRACKER TYPE

FIXED

DESIGN WIND LOAD

150 KM/HR

DESIGN SNOW LOAD

1.8 KN/M2

PANEL TYPE

ANY TYPE OF PV MODULES

MODULE ORIENTATION

LANDSCAPE OR PORTRAIT

STRUCTURE

ANODIZED ALUMINIUM (CUSTOMER REQUIREMENT)

DISTANCE FROM GROUND TO PANEL

100 MM

DISTANCE BETWEEN PANEL AIRGAP

25 MM

TOTAL WEIGHT FOR 1KW

8 - 10 KGS

MAINTENANCE

FREE, PANEL CLEANING AS REQUIRED
